SHINGLE ROOF

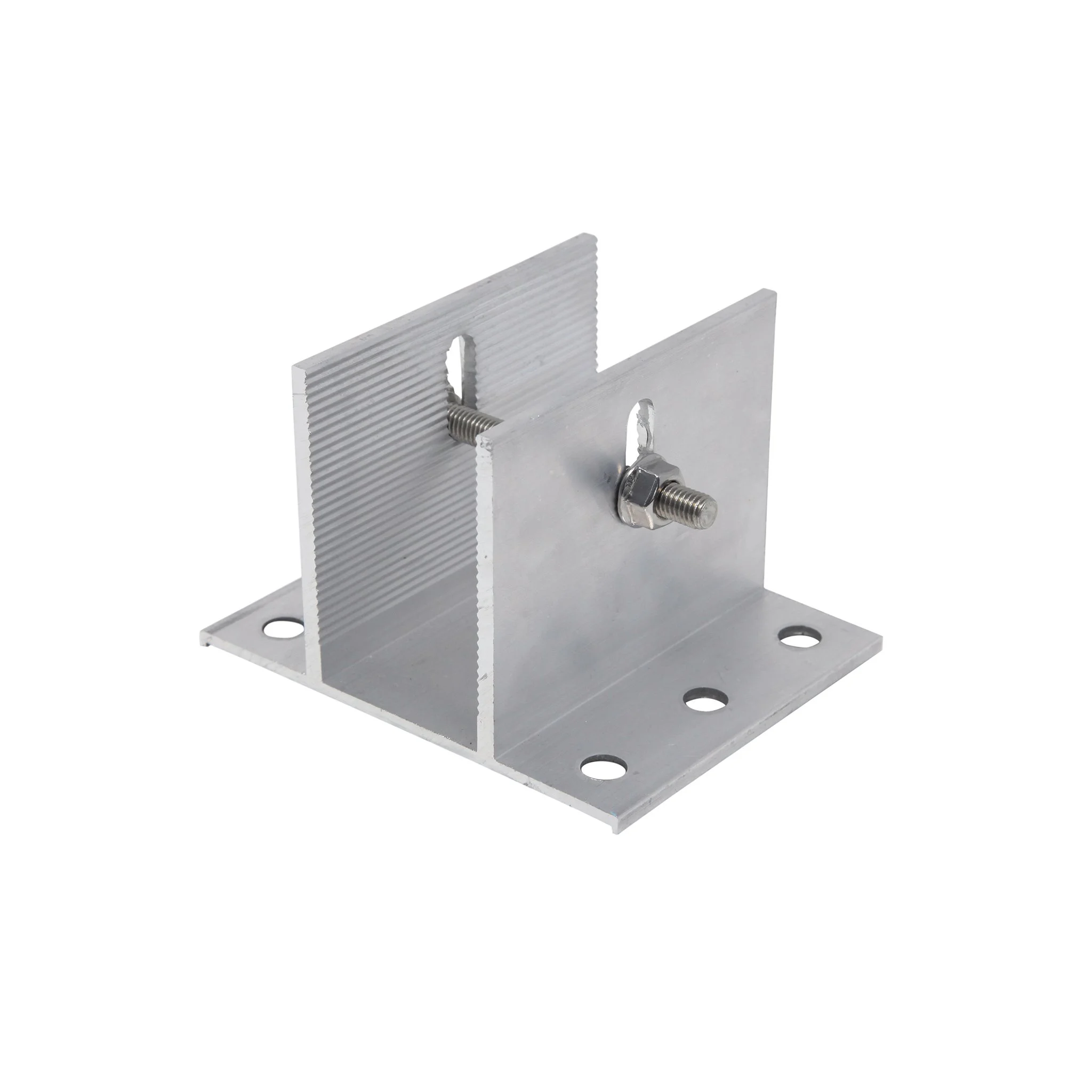

Advanced Racking aims to simplify not only the install process but also the ordering process. Flashguard, an asphalt shingle flashing kit, is the Total Roof Platform (TRP) roof connection kit for shingle roofs. The product has undergone technical reviews by some of the largest shingle manufacturers and received their seal of approval.

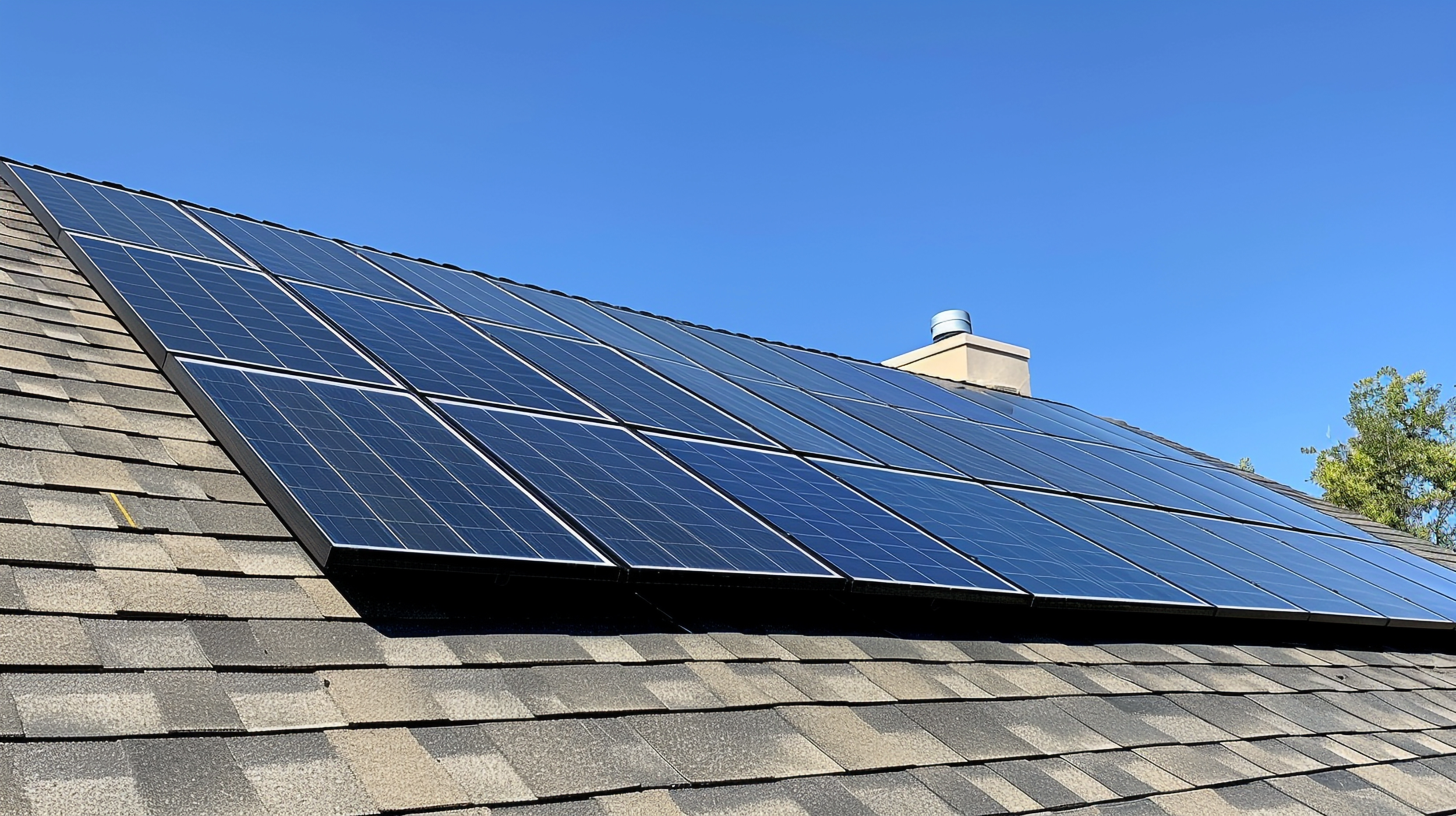

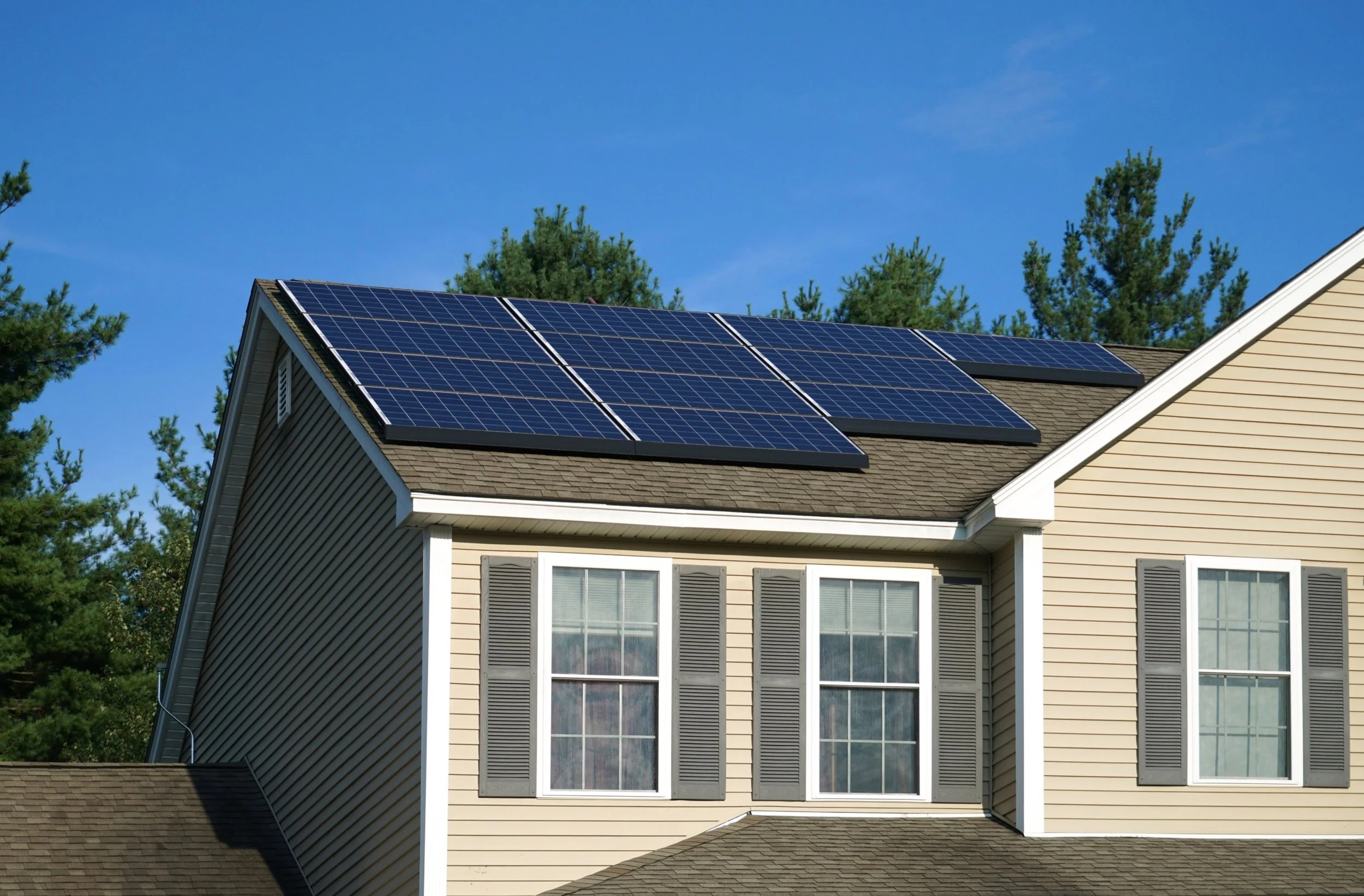

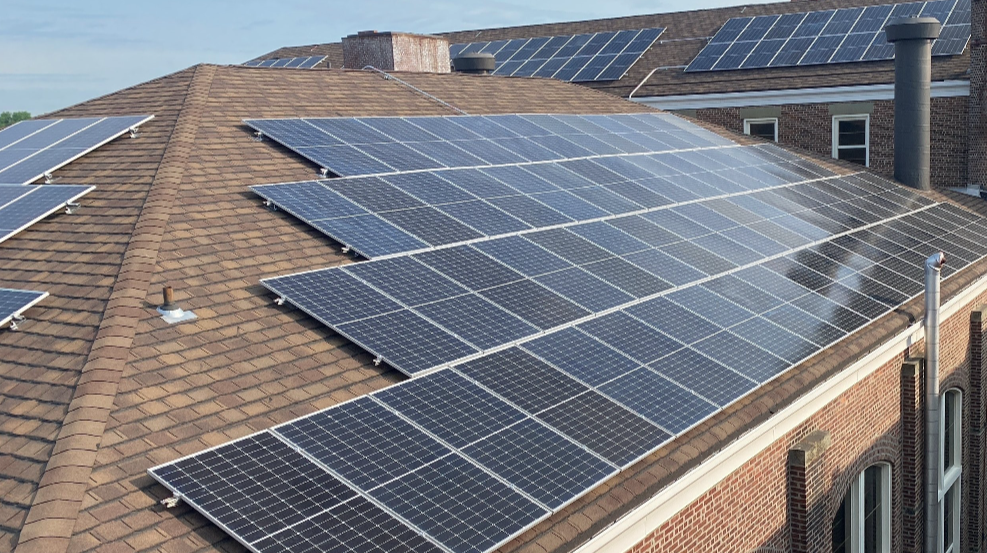

  • Skyrack is the complete flush mount solution for shingle roofs.
  • Features rail spans up to approximately 7’ and is available in mill finish or dark anodized.
  • Designed to easily and cost effectively accommodate power optimizers.
  • Fully supports the module, NO corner clamping – well suited for tough conditions, including high snow loads.

Note: If you don’t want to use the TRP Design tool or prefer a different starting point, complete the Contact form and we’ll call you or, use our Online Layout Request form and we’ll quickly generate a preliminary submittal.

Skyrack, together with Flashguard, is part of the Total Roof Platform (TRP). Use the videos to learn more about the TRP and each of the roof connection kits for low slope roofs.


DESIGN A PROJECT NOW USING A 3°, 5°, 7°, OR 10° MODULE TILT.

Our design tool supports you through the racking installation process. It gives you monthly and annual production based on module selection, inverter, racking hardware, module tilt and site location. Easily generate a bill of materials, as well as figures and visuals for stakeholder presentations.


TECHNICAL SPECIFICATIONS


Roof Types
Asphalt Shingle

Tilt Angle
Flush, 0°

Warranty
20-year fully transferable

Connection
Self-drilling or standard 3/8" lag

Training
Install field guides and onsite available

Materials
Aluminum with stainless steel fasteners

Module Compatibility
All — including thin film, glass on glass

Bonding/Grounding
Certified to UL2703 bonding grounding

System Weight
3-5 psf on average
